General
Brand
Mercusys
Model
Mercusys MW325R
Router Type
Wireless & Ethernet
Hardware
Data Transfer Rate (Wifi)
300 Mbps
Network Standards
100 Mbps
WiFi Network Standards
IEEE 802.11b,g,n
LAN Network Standard
10/100
WAN Network Standard
10/100
Data Transfer Rate (Lan)
100 Mbps
Interface
Interface(s)

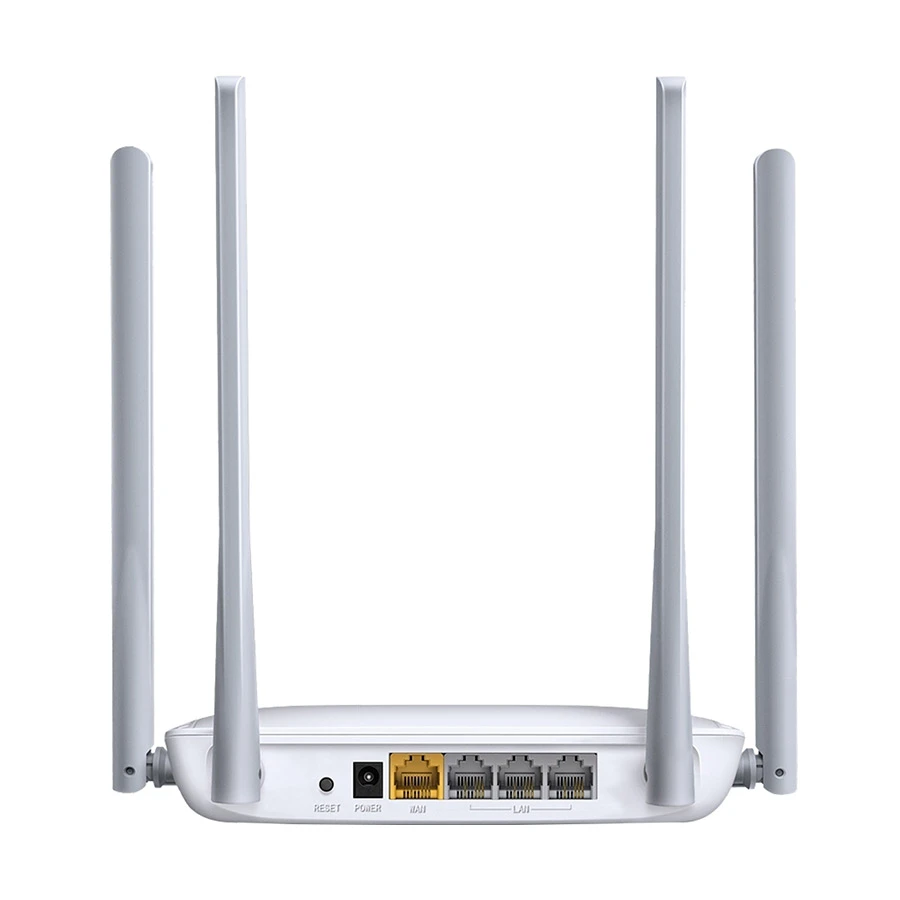

1 x 10/100 RJ45 WAN, 3 x 10/100 RJ45 LAN
Number of WAN Port
1
Number of LAN Port
3
USB Interface
No
USB Interface Application
No
Internet Connectivity
WAN Only
SIM Card Slot Included
No
Sim Card Slot
No
Wireless
Antenna (Type & Qty)

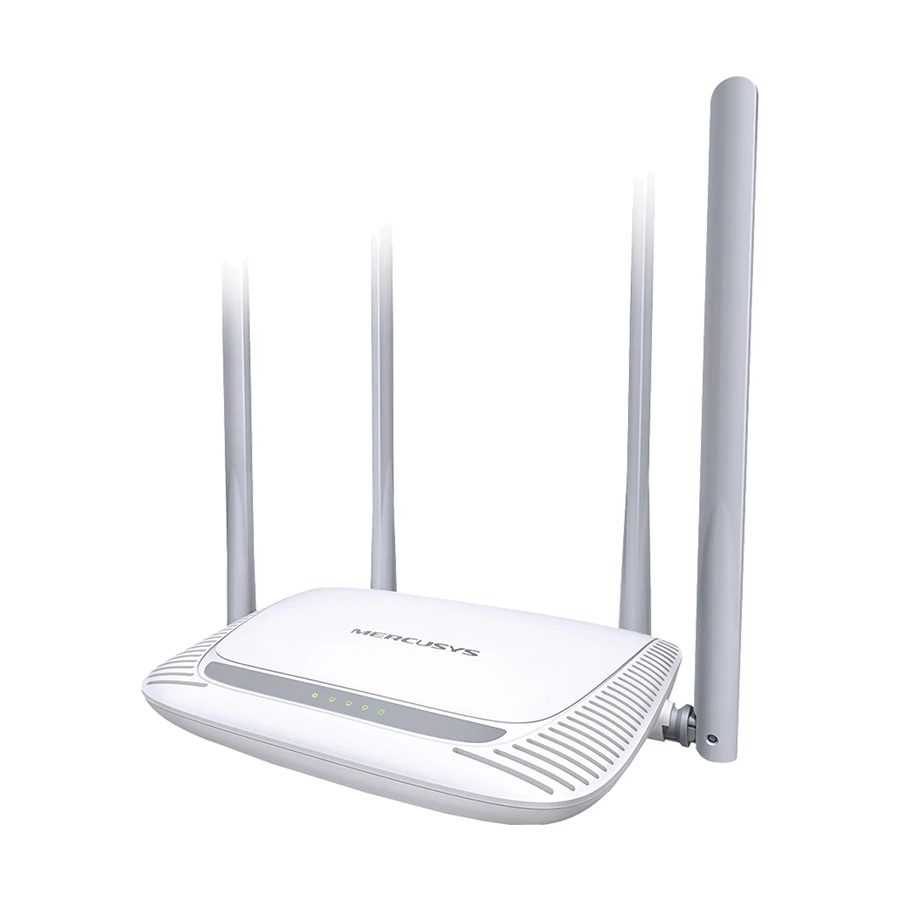

4 x 5dBi fixed omni directional antennas
WAN Type
Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Wi-Fi Generation
Wi-Fi 4
Band
Single
Wi-Fi Coverage (Approximate)
Up to 800 sq. ft.
Number of Concurrent User
Up to 10 User connections
Performance
3G/4G
No
Mesh Technology
No
MIMO Technology
No
Security
Operating Frequency
2.4 GHz
Operation/Working Wireless Modes
Router, Range Extender, Access Point, WISP
Security Protocols
WPA-PSK / WPA2-PSK
Firewall Protocols
IP and MAC address binding
VPN Support
No
Voice Assistant
No
Built in Antivirus
No
Electrical
Power
5V - 0.6A
Operating Temperature
0 degree C - 40 degree C
Storing/Storage Temperature
-40 degree C - 70 degree C
Operating Humidity
10% - 90% non-condensing
Storing/Storage Humidity
5% - 90% non-condensing
Physical Description
Button
Reset button
Dimensions
167 x 118 x 33mm
Color
White
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
Great Coverage – four 5dBi antennas provide wide wireless coverage, Enhanced Signal – high gain antennas dramatically increase wireless signal strength, size and stability
Specialty
Maximum coverage, four 5dBi antennas provide up to 500m2 of wireless coverage, Enhanced signal, high gain antennas dramatically increase wireless signal strength, size and stability, 300Mbps wireless speed, ideal for HD streaming, online gaming, and large file downloads, 300Mbps Enhanced Wireless N Router
Others
External Power Supply: 5VDC/0.6A, Button: Reset button, Frequency: 2.4 - 2.5GHz, Transmission Power: <20dBm, Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP, Management: Access control, Local management, Remote management, DHCP: Server, DHCP Client List, Port Forwarding: Virtual server, UPnP, DMZ, Dynamic DNS: Oray, Protocols: IPv4, Guest Network: 2.4GHz guest network, Dimensions: 167 x 118 x 33mm
Certifications
CE, ROHS
Country Of Origin
China
Made in/ Assemble
China
